MecMast

MAST & ELECTROMECHANICAL TELESCOPIC CYLINDER

The MECMAST is the new Fireco telescopic mast operating with an electric motor.

The MECMAST is an excellent solution for antennas, cameras and other equipment used in the abstract and security.
The main characteristics of this mast are its sturdiness and precision when deployed at height. The exact position is controlled by an encoder and the desired height can be preset using a PC or other device. The mast does not require guying and can support heavy loads. It is equipped with a manual retraction system.



FEATURES


  • Loads up to 250kg
  • Deployed heights up to 24m
  • Programmable deployment height
  • Locking the height position
  • Can be used during surgery or while driving, at variable speeds depending on the load at the head
  • Deployment speed 4m/min
  • Up/down motor 350W / 24V
  • consumption between 5 and 25 A. depending on overhead load, ice, etc.
  • Mast rotation motor : 100W/24V cons. between 3 and 5 A.

EUROMAST_Catalogue MECMAST_26-09-2017_Page_1_Image_0002
EUROMAST_Catalogue MECMAST_26-09-2017_Page_6_Image_0002
EUROMAST_Catalogue MECMAST_26-09-2017_Page_6_Image_0003

New functions


  • The widest range of electro-mechanical masts meeting the real needs of customers

  • High accuracy and almost zero wind displacements
  • Available from 3 to 11 sections to meet your size requirements
  • Lifting force iawesome
  • building alloy light and allowing minimal impact on structures
  • Fewer maintenance requirements compared to existing similar products
  • Safe use for the operator and surrounding devices
  • Limited power requirements
  • Compliant mil-std-810

EXAMPLES OF REALIZATION

EUROMAST_Picto_Applications_Special

Military

EUROMAST_Picto_Applications_Communication

Communication



EUROMAST_Picto_Applications_Monitoring

Monitor



DETAILS

EUROMAST_Catalogue MECMAST_26-09-2017_Page_2_Image_0002

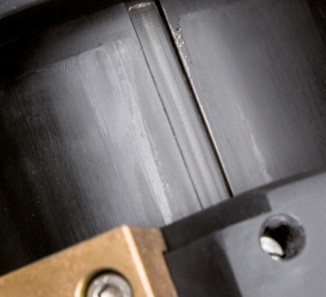

ANTI-ROTATION KEY

EUROMAST_Catalogue MECMAST_26-09-2017_Page_2_Image_0004

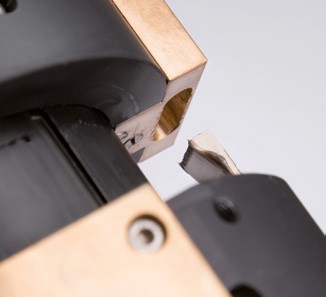

BLOCKAGES

EUROMAST_Catalogue MECMAST_26-09-2017_Page_2_Image_0001

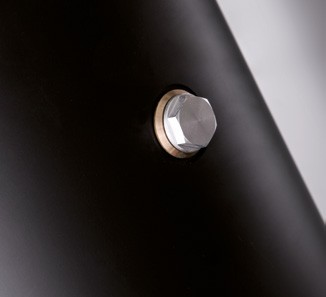

GREASE HOLE

EUROMAST_Catalogue MECMAST_26-09-2017_Page_2_Image_0006

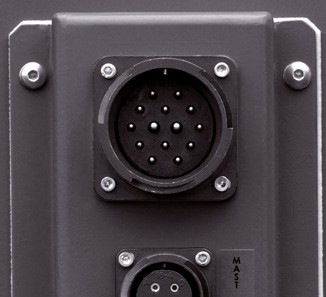

MIL-STD CONNECTORS

EUROMAST_Catalogue MECMAST_26-09-2017_Page_2_Image_0003

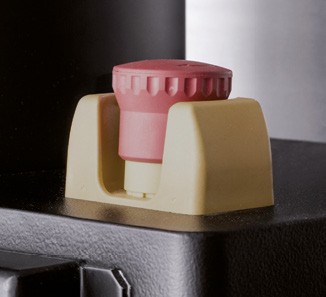

EMERGENCY STOP BUTTON

CONTROLS & MOUNTS

EUROMAST_Catalogue MECMAST_26-09-2017_Page_5_Image_0001

CONTROL BY PC

Not provided

EUROMAST_Catalogue MECMAST_26-09-2017_Page_5_Image_0003

REMOTE CONTROL

Also available with visual display

EUROMAST_Catalogue MECMAST_26-09-2017_Page_5_Image_0002

SCREEN CONTROL
